Roller Racer: Hybrid 3D Modeling with GPT-6 Astra and V2Fun

Overview

Roller Racer combines one adult racing driver and one compact road roller into a standalone display model. The design centers on a bright yellow chassis, two broad metal drums, a red seat, and a helmeted driver leaning toward the steering wheel.

The case documents a hybrid modeling approach: GPT-6 Astra plans the component relationships and coordinates assembly, V2Fun generates the organic character, and Three.js supplies the regular mechanical forms. This division follows the broader GPT-6 Astra and V2Fun collaboration workflow.

Tools Used

• GPT-6 Astra: subject hierarchy, component planning, and assembly calibration, as described in the case notes.
• V2Fun: generated visual references and the textured character mesh identified in the process presentation.
• Three.js: procedural construction of the five mechanical component groups.
• GLB: the supplied final asset format.

Step 1 — Establish the Reference and Seated Pose

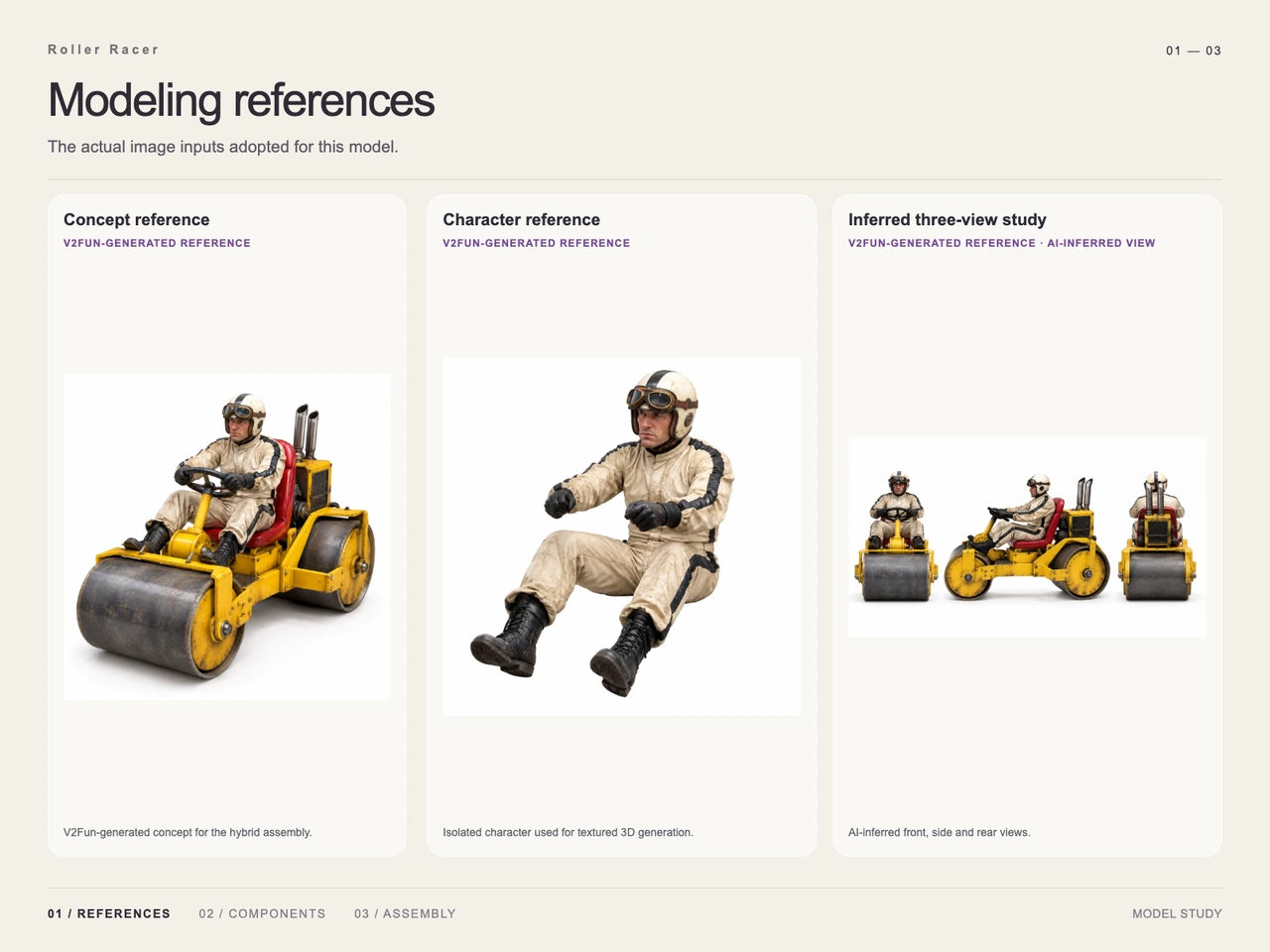

The input presentation contains a complete concept image, an isolated seated character reference, and an inferred front, side, and rear study. The character reference preserves bent knees and forward-reaching arms while removing the vehicle around them.

The three-view study is explicitly labeled AI-inferred. It helps communicate the intended arrangement, but does not establish unseen geometry as observed fact. The single-image and multi-view input guide provides related context for preparing references and handling hidden surfaces.

Step 2 — Divide the Asset into Six Groups

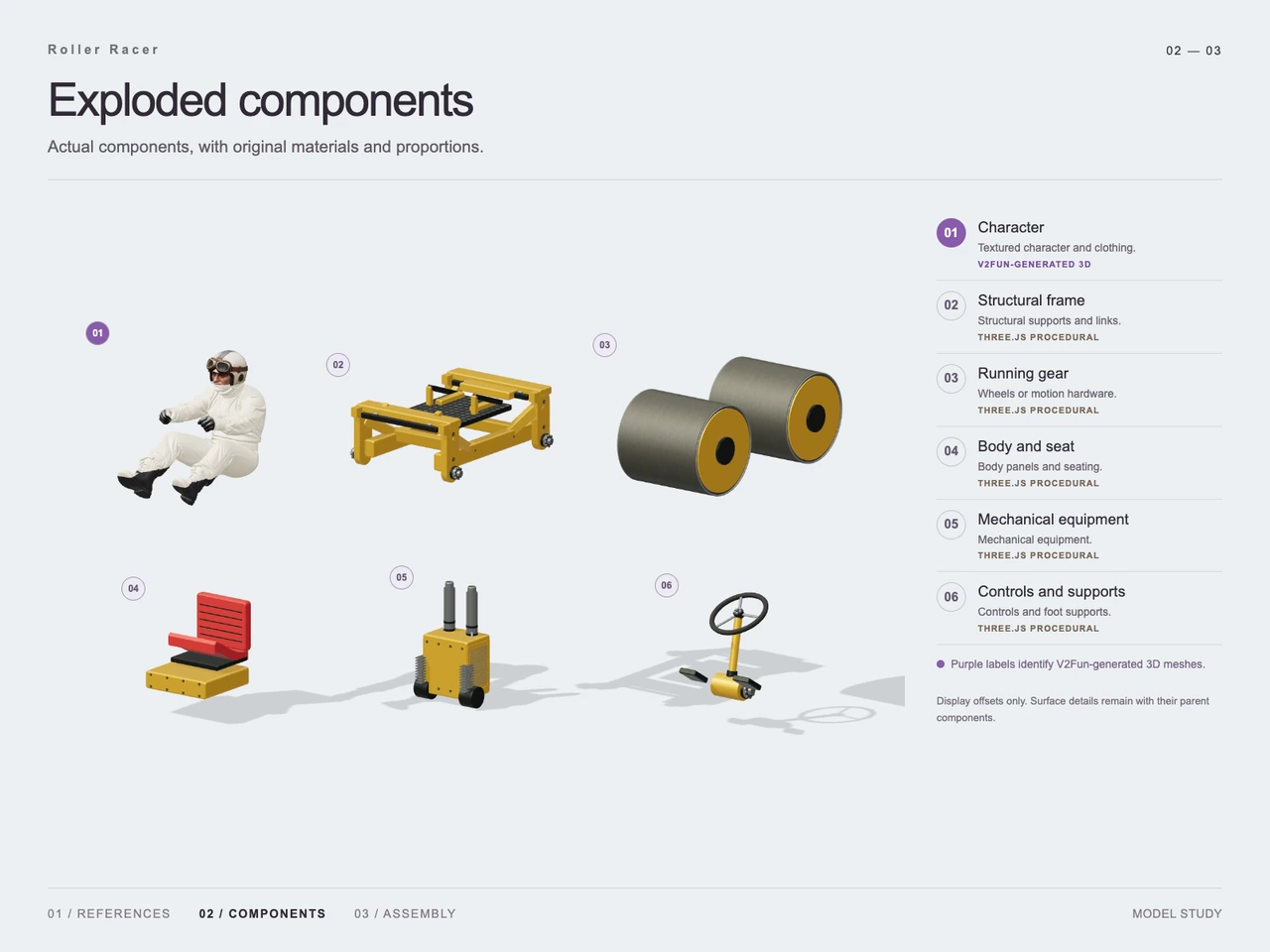

The exploded presentation identifies six component groups:

1. Character: the seated driver, clothing, helmet, goggles, gloves, and boots.
2. Structural frame: yellow supports and the central platform.
3. Running gear: two broad cylindrical drums with circular end plates.
4. Body and seat: the red seating assembly and its yellow base.
5. Mechanical equipment: the rear engine box and two upright exhaust pipes.
6. Controls and supports: the steering wheel, column, and foot supports.

These are presentation groups, not a verified count of individual meshes in the GLB. The exploded offsets separate the assemblies for inspection; smaller surface details remain with their parent components.

Step 3 — Generate the Character and Build the Machinery

The process sheet marks the character as V2Fun-generated 3D and all five mechanical groups as Three.js procedural work. This makes the division concrete: the face and clothing folds belong to the generated character, while cylinders, plates, beams, and rods define the vehicle.

The isolated driver reference is identified as the input used for textured character generation. See V2Fun's image-to-3D model generator for the related generation capability. This case does not document a separate retexturing pass or a texture-resolution measurement.

Step 4 — Assemble Around the Driver

The case notes describe a return to the agent for combination and calibration. The final view shows the seat above the chassis between the drums, the engine housing behind the driver, and the steering column rising toward the hands.

The key assembly relationships are the seated body against the red seat, the hands around the steering wheel, and the boots near the foot supports. Their placement is visible in the final presentation; exact contact clearances are not measured.

Workflow

Concept and isolated character references → component planning → V2Fun character generation and Three.js mechanical construction → assembly calibration → GLB export → final assembly presentation.

Prompt

English translation of the design brief:

A sturdy adult racing driver wearing a vintage helmet and goggles, dressed in a racing suit with natural folds, sits on an exaggerated miniature road-roller racer. Both hands grip a small steering wheel, and both feet rest on side pedals. One wide metal cylindrical drum sits at the front and another at the rear, connected to the central chassis by rectangular supports on both sides. The seat is raised between the drums, with a square engine box and two vertical exhaust pipes behind it.

Use a bright yellow frame, dark gray drums, and a red seat. Keep the machine short and chunky, with clear connections. Create one complete standalone asset containing one character and one machine, combining realistic proportions with mild exaggeration in a collectible-model style. Give the face expression and the clothing natural folds. Build the machinery mainly from cylinders, discs, rectangular plates, straight rods, and a few regular curved pipes. Keep major part boundaries distinct and preserve contact between the character, seat, grips, and pedals.

Show the complete subject from a slightly elevated front three-quarter view, centered with margins, on a white background. Use soft studio lighting, contact shadows, sharp focus throughout, and refined PBR materials. Include no text, numbers, logos, watermarks, complex scenery, or motion blur. Produce one finished reference image, not a collage or exploded view.

Result

The final presentation shows the assembled driver and yellow roller with metallic drums, a red seat, visible frame connections, and a rear engine housing. It identifies the image as a render of the delivered GLB after reloading, and describes the asset as a static display model with inferred unseen surfaces.

The main silhouette and color arrangement remain recognizable. The final racing suit appears lighter and more uniform than the striped, weathered reference, and the steering wheel appears larger relative to the driver than the brief's small-wheel intent.

Supplied file metadata: 93-v3-final.glb, 47,707,392 bytes, MIME type model/gltf-binary. No case-specific generation time or token-saving measurement is supplied. For delivery-format context, see the AI 3D export guide.
