Build a Polar Researcher Snowmobile with GPT-6 Astra and V2Fun

Overview

This case turns a front three-quarter concept of an adult polar researcher riding a compact snowmobile into one assembled 3D asset. The visual brief combines an organic character—face, fur-trimmed hood, insulated clothing, gloves, and a seated pose—with a machine built from broad front skis, steering supports, a tracked rear assembly, faceted orange-red body panels, a long seat, and a rectangular equipment box.

The case therefore suits a hybrid workflow: GPT-6 Astra interprets the subject hierarchy and contact relationships, V2Fun supplies the detailed character mesh, and procedural Three.js geometry builds the vehicle’s regular mechanical forms. This division follows the broader GPT-6 Astra and V2Fun model-collaboration workflow.

Tools Used

• GPT-6 Astra: reference analysis, component planning, spatial reasoning, and assembly calibration.
• V2Fun: generation of the textured researcher character from the visual reference. The platform’s AI 3D model generator provides background on its image-based modeling route.
• Three.js / procedural construction: structural frame, running gear, body and seat, equipment box, controls, and supports.
• Visual references: a complete concept, an isolated character study, and an AI-inferred front/side/rear study.
• GLB: the supplied final delivery format; this case does not establish rigging, animation, or downstream engine readiness.

Step 1 — Read the Complete Reference

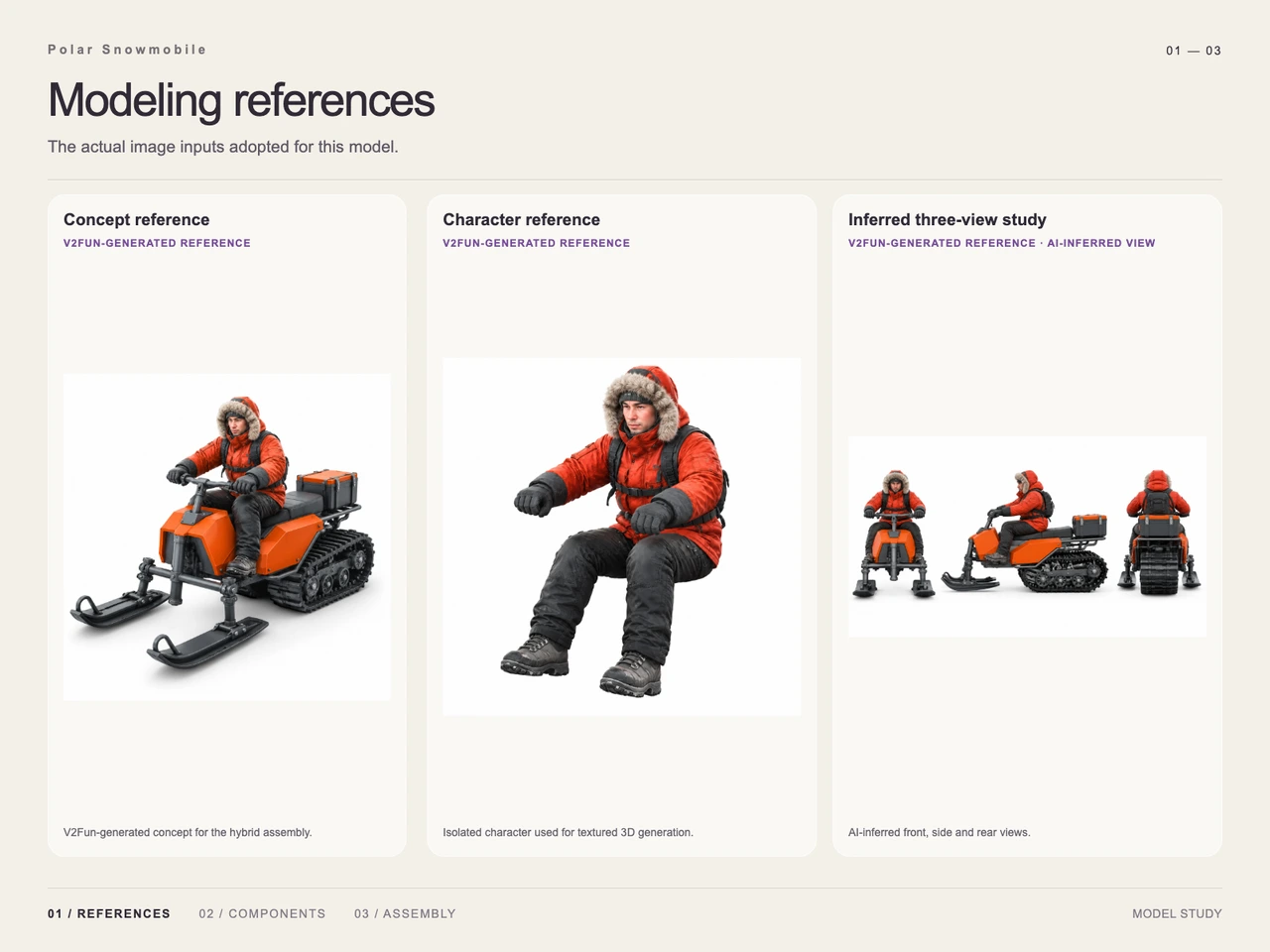

GPT-6 Astra first interprets the researcher and snowmobile as a single independent asset. The concept establishes the orange-red and dark-gray palette, seated pose, hand-to-handlebar contact, foot placement, twin front skis, rear track, seat, and equipment box.

Step 2 — Clarify the Character and Hidden Views

An isolated character reference provides clearer evidence for the face, fur-lined hood, heavy clothing, gloves, boots, backpack straps, and seated posture. A front/side/rear study is also shown, but those additional angles are explicitly AI-inferred rather than independently photographed source views. For projects with genuine multi-angle evidence, the multi-view 3D modeling workflow explains how separate views can reduce unseen-side ambiguity.

Step 3 — Decompose the Asset

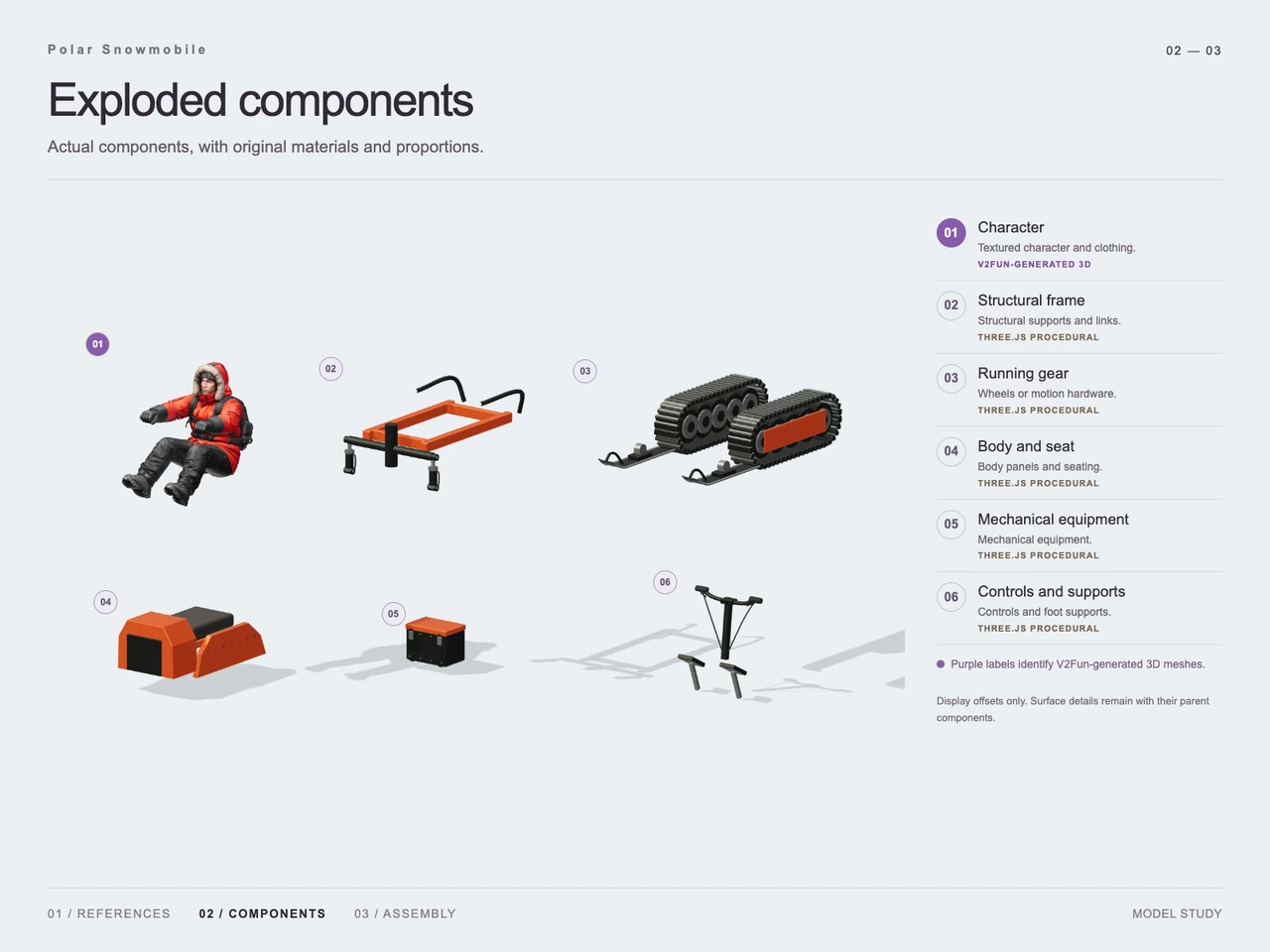

The process view separates the model into six functional groups: character, structural frame, running gear, body and seat, mechanical equipment, and controls and supports. This makes the key relationships explicit, including the character’s position over the seat, both hands at the handlebar, the equipment box behind the rider, the skis ahead of the frame, and the track assemblies below the body.

Step 4 — Generate the Organic Character

V2Fun generates the textured researcher as the complex organic component. The visible result preserves the bulky winter silhouette, expressive face, layered clothing, natural folds, gloves, boots, and bent seated pose. No claim is made here about the character’s topology, UV layout, skeleton, or deformation quality.

Step 5 — Build the Regular Mechanical Parts

The process image identifies the remaining groups as procedurally constructed. Rectangular rails and posts form the structural frame; repeated circular and belt-like elements form the tracked running gear; angled plates establish the body shell; and rods, cylinders, and curved tubes form the skis, steering assembly, handlebar, and supports. The seat and rear equipment box are positioned as distinct readable forms.

Step 6 — Calibrate the Assembly

GPT-6 Astra brings the generated character and procedural machinery together, adjusting scale, rotation, placement, and contact points. The final render shows the researcher seated on the long cushion, gripping the handlebar with both hands and placing both boots toward the front supports. The orange-red body, dark running gear, twin skis, broad track system, and rear box remain visually distinct.

Workflow

Concept reference → Character isolation → AI-inferred view study → Component decomposition → V2Fun character generation → Procedural vehicle construction → Contact-point calibration → Assembly → GLB delivery

Prompt

Create a complete standalone collectible-style 3D asset of an adult polar researcher in heavy cold-weather clothing, with a fur-trimmed hood and large gloves, seated on a compact snowmobile and holding the handlebar with both hands. Give the vehicle two broad flat front skis connected through vertical steering shafts and a crossbar, a wide rear track system, a simple faceted central body, a long top seat, and a rectangular equipment box at the back. Use orange-red exterior panels and dark-gray structural parts, keep mechanical connections unobstructed, and preserve the rider’s contact with the seat, grips, and foot supports. Present the full subject from a slightly elevated front three-quarter view on a white background with soft studio lighting, contact shadows, clear focus, refined PBR-style materials, and no text, logos, watermark, complex scenery, or motion blur. Produce one finished reference image rather than a collage or exploded diagram.

Result

The delivered file is 89-v2-final.glb (model/gltf-binary), with a supplied size of 47,562,820 bytes. The final evidence shows one assembled static display model containing the winter-clad researcher, orange-red faceted body, long seat, rear equipment box, controls, front ski system, and tracked running gear.

The images demonstrate visual assembly and material presentation, but they do not prove topology quality, UV quality, polygon count, physical dimensions, printability, animation readiness, engine performance, or commercial rights. Teams planning another handoff can use the GLB export-format guide to identify checks required by the destination workflow.
